FABON Mash Feed Plant 500 kg/hr Capacity

Compact Feed Processing Line for Poultry, Cattle & Livestock

Product Overview

The FABON Mash Feed Plant (500 kg/hr) is a small-to-medium capacity feed processing solution designed for farmers, co-operatives, and small feed millers. It is engineered to produce high-quality mash feed by grinding, mixing, and homogenizing raw ingredients like maize, soybean meal, groundnut cake, bran, and mineral-vitamin premixes. The plant ensures balanced nutrition, uniform particle size, and consistent quality feed for poultry, cattle, sheep, goats, and aquaculture.

Applications

• Poultry mash feed (chick starter, grower, layer feed)

• Cattle mash feed (dairy, beef)

• Goat, sheep, pig feed production

• Fish feed (mash type)

• On-farm or commercial small-scale feed production

Process Flow

Raw Material Intake Grinding (Hammer Mill) Storage Bin Mixing (Horizontal / Vertical Mixer) Addition of Premixes & Additives Discharge Bagging

Key Features

• Capacity: 500 kg/hr (customizable from 250 kg/hr to 2 TPH)

• Compact Design: Requires minimal space, easy installation

• Efficient Grinding: Hammer mill ensures uniform particle size

• Homogeneous Mixing: Double-ribbon or paddle mixer ensures thorough blending with <5% coefficient of variation (CV)

• Flexibility: Can handle multiple raw materials (cereals, cakes, bran, husks)

• Easy Operation: User-friendly control panel with overload protection

• Durable Build: MS heavy-duty construction, optional SS contact parts

• Low Power Consumption: Energy-efficient design for lower OPEX

Technical Specifications (Typical 500 kg/hr Line)

• Hammer Mill: 7.5 10 HP motor, output ~500 kg/hr

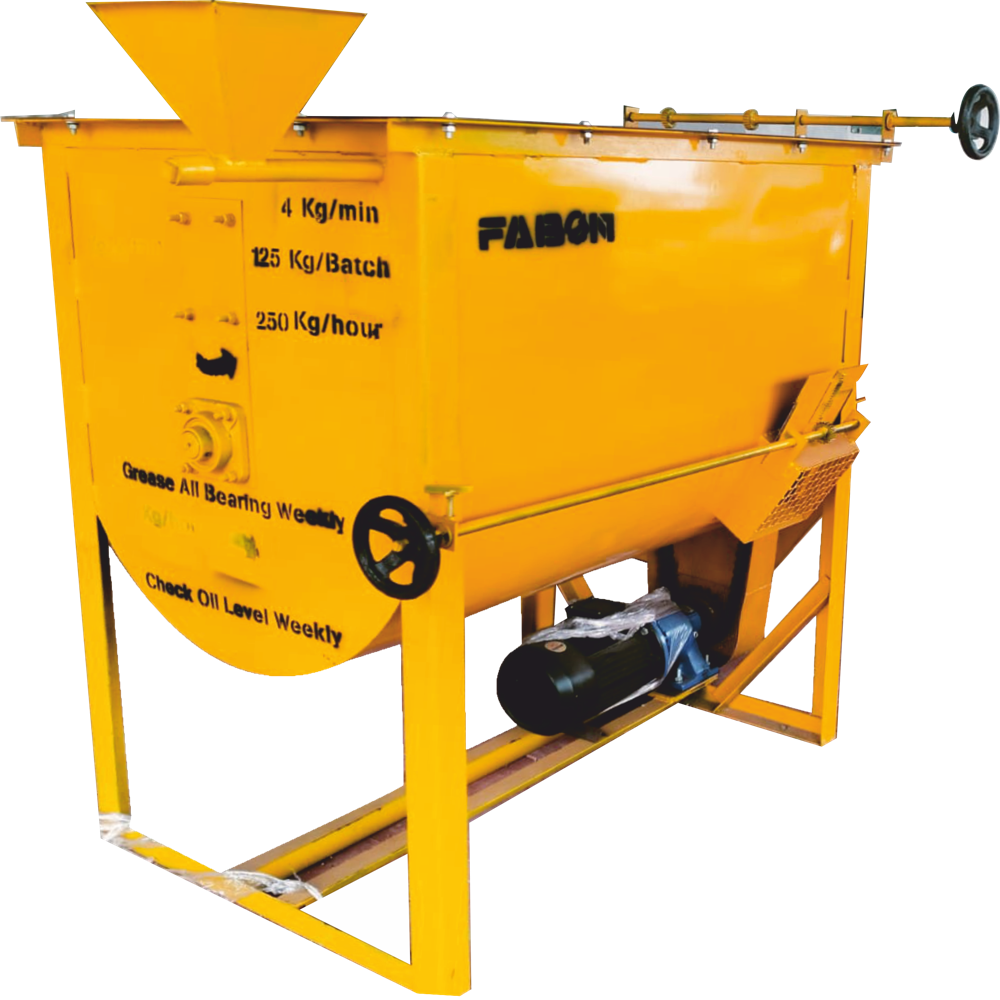

• Mixer: 500 kg batch, 57 minutes mixing time, 7.5 HP motor

• Feeding System: Screw / Belt conveyors

• Control Panel: Starter, overload relays, safety interlocks

• Plant Area Required: 500800 sq. ft. shed

• Power Requirement: ~2025 HP connected load

• Output Form: Mash feed (loose, bagged 2550 kg)

Advantages

• Produces balanced, nutrient-rich feed with uniform particle size

• Reduces feed wastage and improves animal performance

• Low investment ideal for farmers and small-scale entrepreneurs

• Modular design allows future expansion (pellet mill / crumbler integration)

• Requires only 23 operators per shift

Optional Add-Ons

• Automatic weighing & batching system

• Dust control cyclone & blower system

• Pre-cleaner for raw material impurities

• Pellet mill + cooler + crumbler (if pellet/crumble feed required later)

Maintenance & Safety

• Easy replacement of hammer mill screens & hammers

• Regular greasing of bearings & mixer shaft

• Overload protection & emergency stop system provided
